射频微波滤波器(6)-波导滤波器
2016-10-30 by:CAE仿真在线 来源:互联网
矩形波导滤波器常见类型

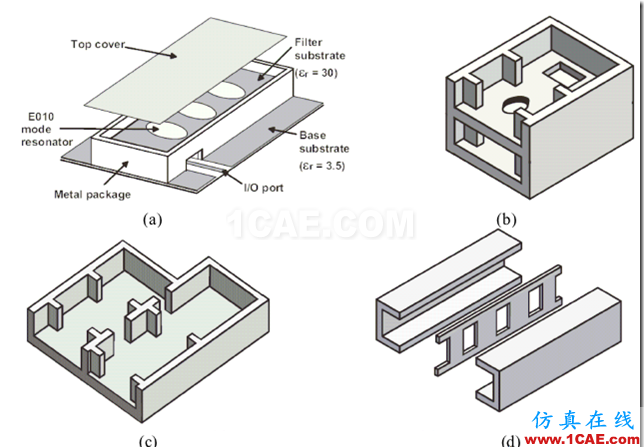

适合于批量生产的波导滤波器

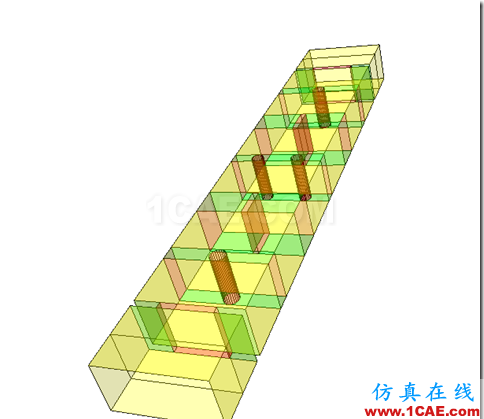

(1)Iris,Post,Metal-Insert 混合波导滤波器

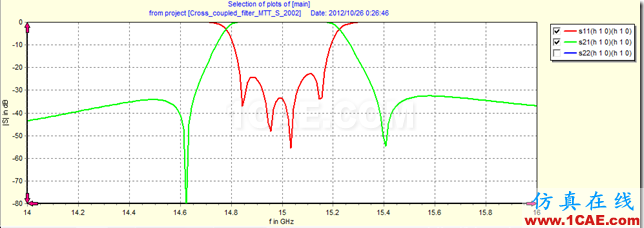

(2)交叉耦合波导滤波器


3. 波导双模滤波器

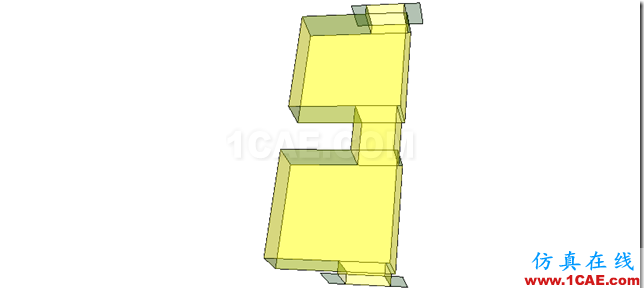

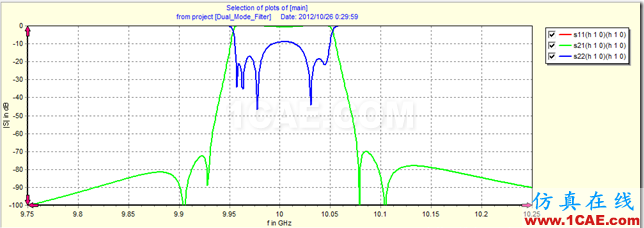

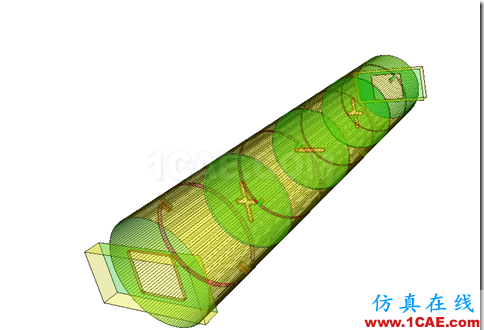

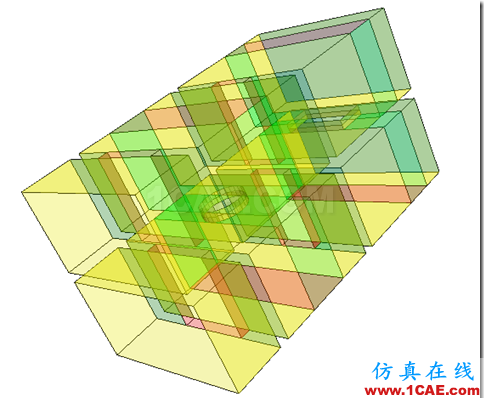

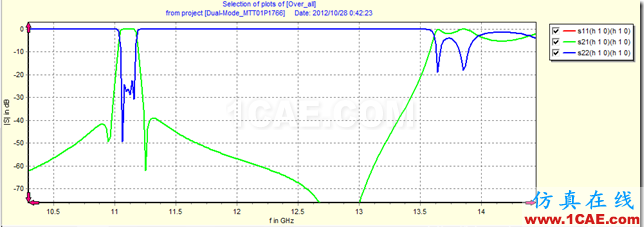

简并模过模滤波器:方波导双模滤波器,基于矩形波导中的电感不连续性。

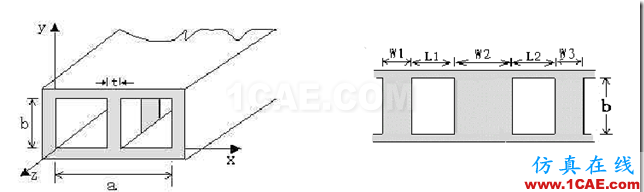

4. E面膜片

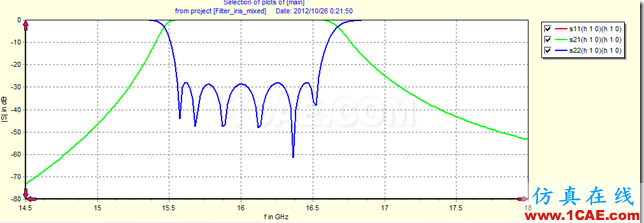

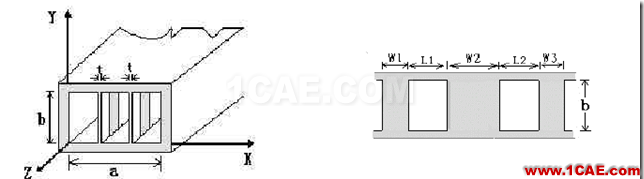

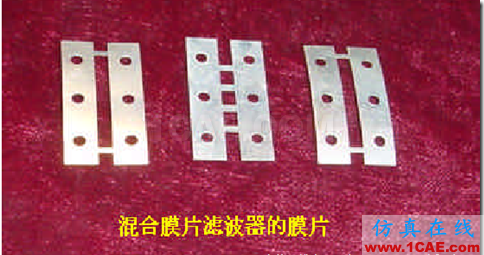

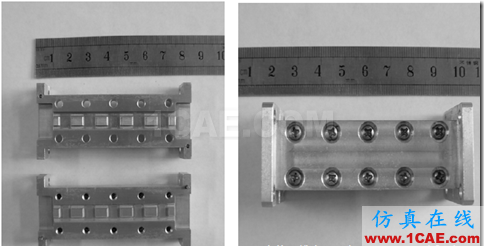

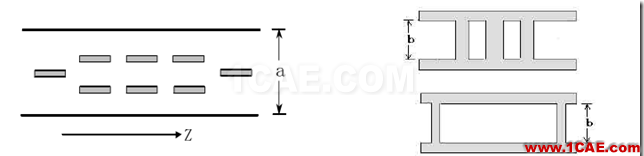

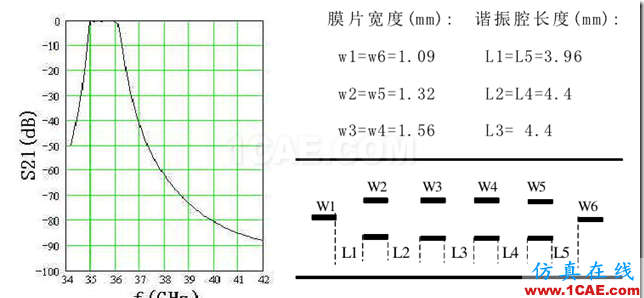

单金属膜片 E 面滤波器阻带特性并不令人满意,特别是高端阻带抑制度差;双金属膜片结构,有效地改善了阻带特性,但在相同带宽条件下滤波器每级膜片的尺寸将会更小,所以这种结构难以实现带宽较宽的的滤波器。混合金属膜片结构,输入、输出采用单膜片,级间采用双膜片,综合解决带宽和滤波器的高端抑制度问题,并且在结构上易于实现。

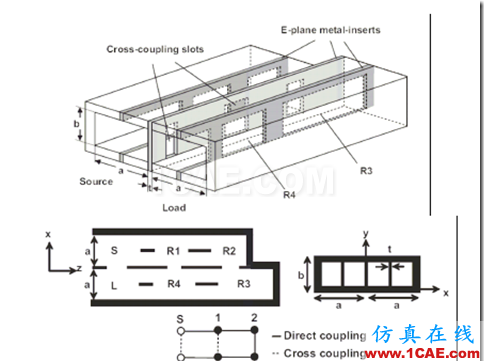

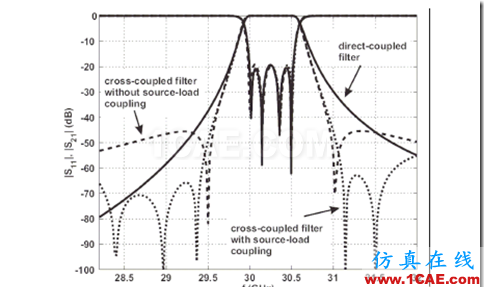

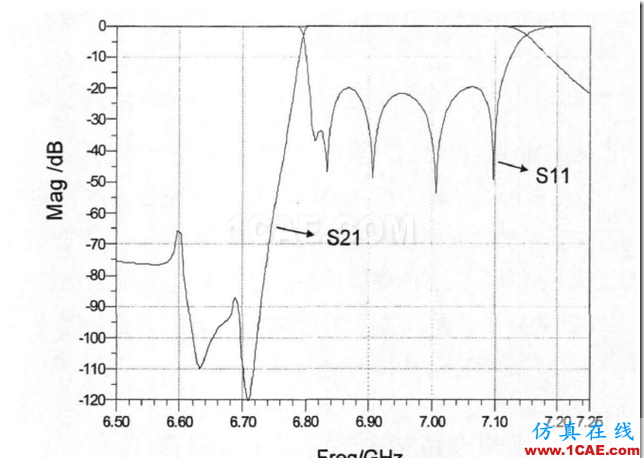

含源端负载端耦合交叉耦合4谐振器折叠E面金属片插入滤波器

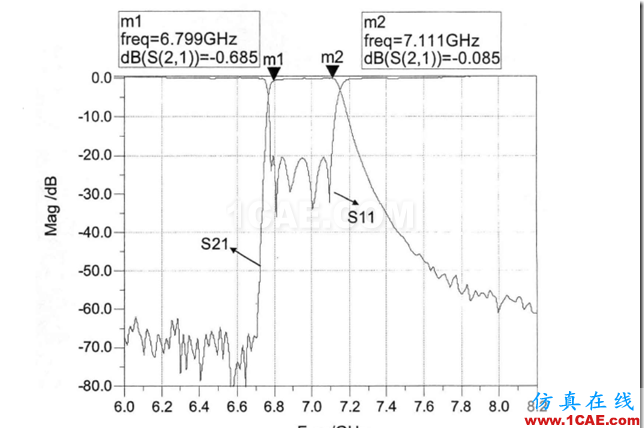

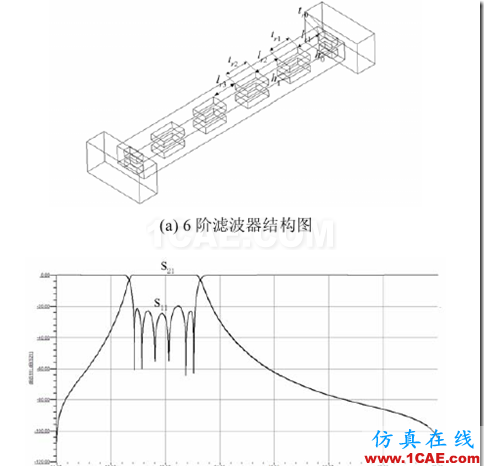

5. 消失模波导滤波器

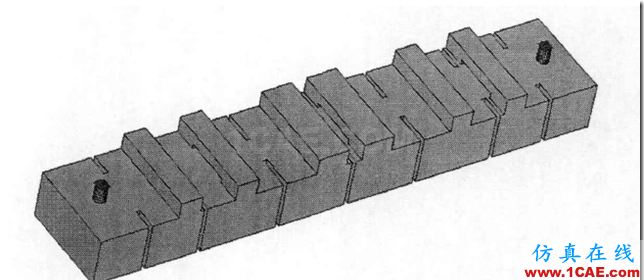

截至波导中消失模的特性使得截至波导段对 TE10模呈现电抗特性,在截至波导中加载对消失模呈电容特性的结构时,就会产生谐振现象。而多个这样的结构级联在一起,便能实现滤波特性,这就是消失模波导滤波器的基本原理。最初,金属圆柱、调谐螺钉通常被用作谐振元件。而在近些年,脊波导结构已被用于消失模滤波器的设计。



6. 短路枝节
波导短路支节就是在主波导上连接一段终端短路的波导传输线。由3.2.5节的传输线谐振器理论可知,在波导E面上的短路支节相当于在波导上串联一个谐振器。

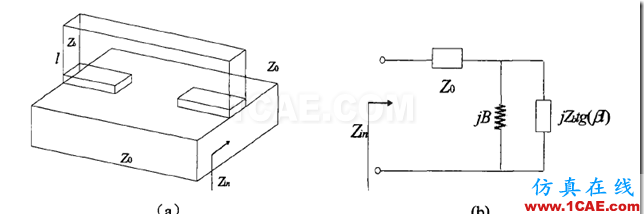

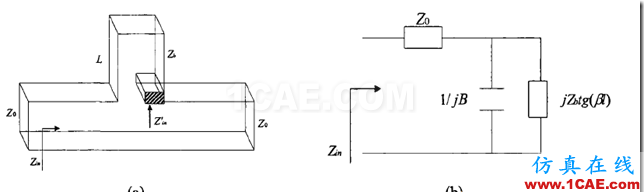

波导E面短路支节及其电容加载等效电路





【参考文献】
马敏,《E面金属膜片波导滤波器的研究》,2003.
王春艳,《波导双模滤波器设计》,2009.
杜勇,《消失模波导滤波器及正交模耦合器的设计》,2011.
刘荣军,《短路支节在波导滤波器中的应用》,2008.
