搜索ansys 同时显示多阶模态
2017-01-16 by:CAE仿真在线 来源:互联网
!在前期已有计算结果的基础上,输入以下代码,可实现4个子窗口,同时显示不同阶模态振型图;并输出到硬盘。以下实现1-7阶模态显示,输出为2个图片文件分别为modal_1-3.bmp和modal_4-7.bmp,同理可自行扩展代码实现更多阶模态输出。
!__________________________________________________________
!调节ANSYS背景为白色
/RGB,INDEX,100,100,100, 0
/RGB,INDEX, 80, 80, 80,13
/RGB,INDEX, 60, 60, 60,14
/RGB,INDEX, 0, 0, 0,15
/REPLOT
/post1
!设置窗口1:位于左上角
/WINDOW,1,LTOP
/REPLOT
!设置窗口2:位于右上角
/WINDOW,2,RTOP,,,,1
/REPLOT
!设置窗口3:位于左下角
/WINDOW,3,LBOT,,,,1
/REPLOT
!设置窗口4:位于右下角
/WINDOW,4,RBOT,,,,1
/REPLOT
/erase
!重显示时从屏幕上删除原来的显示内容,为默认值
/win,1,on
/win,2,off
/win,3,off
/win,4,off
/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT
EPLOT
!显示模型单元
/noerase
!重显示时保留屏幕上原来的显示内容
/win,1,off
/win,2,on
/win,3,off
/win,4,off
/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT
SET,,, ,,,
,1
!读取第1阶模态
PLNSOL, U,SUM,
0,1.0
!显示第1阶模态振型
/noerase
/win,1,off
/win,2,off
/win,3,on
/win,4,off
/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT
SET,,, ,,,
,2
!读取第2阶模态
PLNSOL, U,SUM,
0,1.0
!显示第2阶模态振型
/noerase
/win,1,off
/win,2,off
/win,3,off
/win,4,on
/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT
SET,,, ,,,
,3
!读取第3阶模态
PLNSOL, U,SUM,
0,1.0
!显示第3阶模态振型
!输出图片为

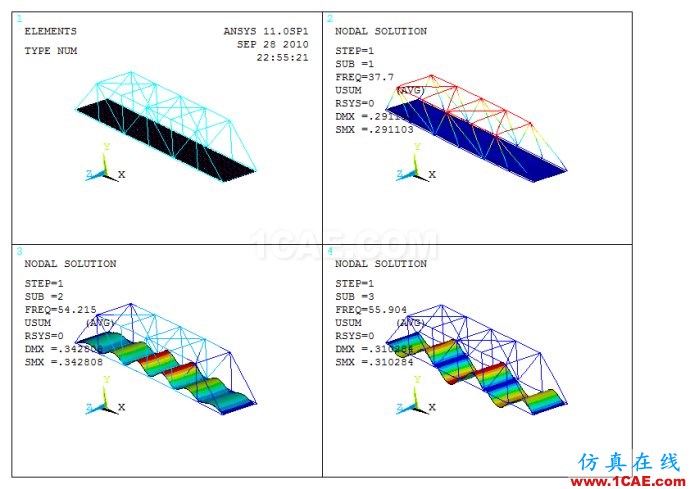

/image,save,'model3-modal_1-3.bmp'
!------第二幅图片------
/erase
!重显示时从屏幕上删除原来的显示内容,为默认值
/win,1,on
/win,2,off
/win,3,off
/win,4,off
/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT
SET,,, ,,,
,4
!读取第4阶模态
PLNSOL, U,SUM,
0,1.0
!显示第4阶模态振型
/noerase
!重显示时保留屏幕上原来的显示内容
/win,1,off
/win,2,on
/win,3,off
/win,4,off
/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT
SET,,, ,,,
,5
!读取第5阶模态
PLNSOL, U,SUM,
0,1.0
!显示第5阶模态振型
/noerase
/win,1,off
/win,2,off
/win,3,on
/win,4,off
/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT
SET,,, ,,,
,6
!读取第6阶模态
PLNSOL, U,SUM,
0,1.0
!显示第6阶模态振型
/noerase
/win,1,off
/win,2,off
/win,3,off
/win,4,on
/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT
SET,,, ,,,
,7
!读取第7阶模态
PLNSOL, U,SUM,
0,1.0
!显示第7阶模态振型

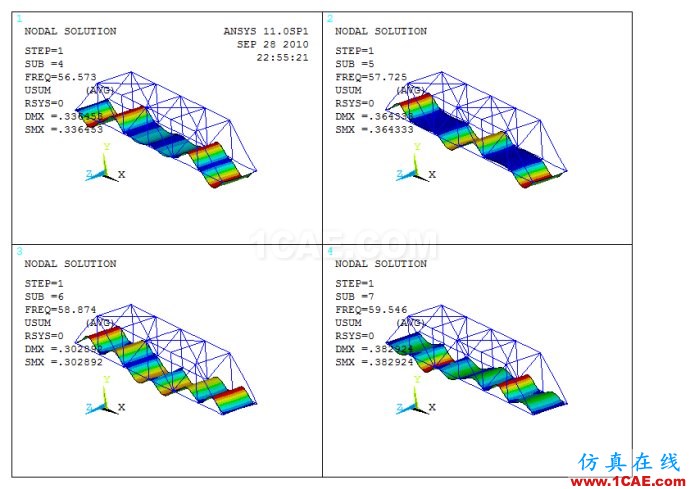

/image,save,'model3-modal_4-7.bmp'
!恢复为当前窗口样式
/win,all,on
/erase
/PLOPTS, DEFA
!调节ANSYS背景为黑色
/RGB,INDEX, 0, 0, 0, 0
/RGB,INDEX, 60, 60, 60,13
/RGB,INDEX, 80, 80, 80,14
/RGB,INDEX,100,100,100,15
/REPLOT
/WIND,ALL,OFF
/WIND,1,FULL
EPLOT
